Description

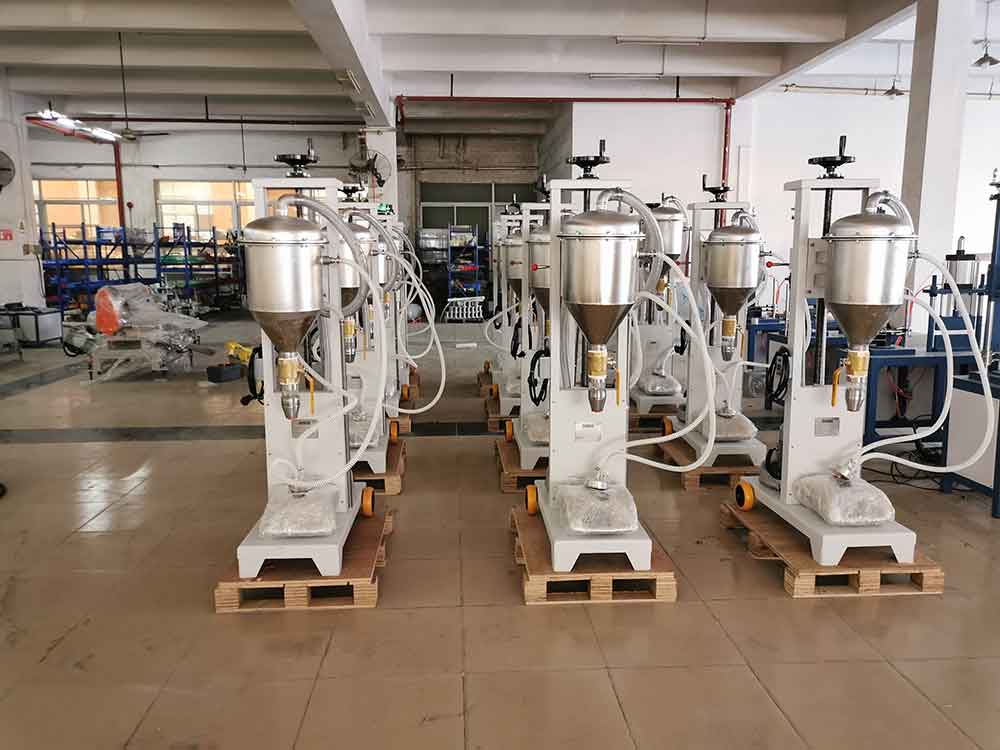

Dry powder fire extinguisher filling equipment and its filling process are used to solve the problem that dry powder will be sucked into the vacuum equipment under the action of negative pressure. The dry powder fire extinguisher filling equipment includes a support frame, a transmission device and a filling equipment. It also includes a rotating device; the transmission device includes a sliding plate connected with power.
| No. | Item | Data |
| 1 | Model | HLT16-1 |
| 2 | Weight | 110KG |
| 3 | Voltage | 220V 380V Cusomized |
| 4 | Power | 1.1KW |
| 5 | Filling Station | 1kg+0.02 |
| 6 | Size | 870*590*1320mm |
It uses a screw conveying method to load materials, and changes the speed of the equipment to achieve the speed of discharging materials. This process mainly consists of: motor screw feeder, stainless steel powder storage tank, lifting frame, powder source controller, etc. After the rough filling is completed, the conveyor belt transfers the fire extinguisher to the fine filling station, where it is accurately positioned. The tray lifts the fire extinguisher tank. The operator uses the lifting button on the main control board to appropriately adjust the height between the discharge port and the tank body. This station has a dust removal function, which is based on the ability to fill and remove dust after the first lift and to suck up the dust attached to the bottling mouth after the first lift.
